3.5 Inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP

Product Categories
ESEN HK LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

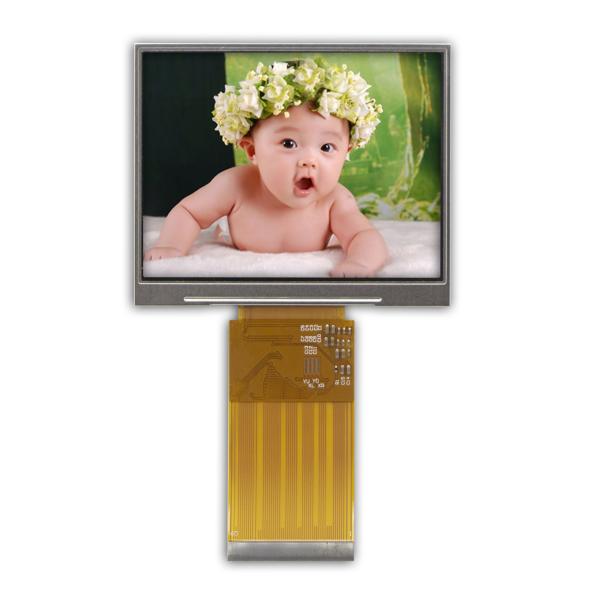

3.5 Inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP

Brand Name : ENSN

Model Number : T035Q08-T

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : 1000/PCS

Price : Please enquiry

Payment Terms : L/C,T/T

Supply Ability : 300K/mth

Delivery Time : 2-4 weeks

Packaging Details : All products are packaged in an appropriate and correct manner.

Size : 3.5inch

Resolution : 320(horizontal)*240(Vertical)

Interface : 18/16/9/8 bit Parallel interfaceSerial peripheral interface

Connect type : Connector

Color Depth : 262K

Technology type : a-Si

Driver IC : SSD2219

LCM (W x H x D) (mm) : 76.90*64.0*3.1

Display Spec. Pixel pitch (mm) : 0.219 x 0.219

Storage temperature : -30'c~+80°c

Working temperature : -20C~+70°C

Pixel Configuration : R.G.B. Vertical Stripe

Display Mode : Normally White

Surface Treatment : HC

Viewing Direction : 6 O’clock

Active Area(mm) : 70.08 x 52.56

With /Without TSP : With RTP

Weight (g) : TBD

LED Numbers : 6 LEDs

Contact Now

3.5inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP

Absolute Maximum Ratings

Item Symbol MIN MAX Unit Remark
Supply Voltage VDD -0.3 5.0 V
Input Signal Voltage Vin -0.3 VDD+0.3 V
Logic Output Voltage VOUT -0.3 VDD+0.3 V
Operating Temperature TOPR -20 70 ℃
Storage Temperature TSTG -30 80 ℃

4. Operating conditions:

Parameter Symbol MIN TYP MAX Unit Remark
Power Voltage Vcc 3.0 3.3 3.6 V
Digital Operation Current Icc
8.6
mA
Gate On Power VCOMH 2.5 13.9 4.5 V
Gate Off Power VGH - -13.6 15 V
Vcom High Voltage VcomH - 3.9 - V Note1
Vcom low Voltage VcomL - -1.2 - V Note1
Vcom level max VcomA - - 6 V

Note1. VcomH& VcomL:Adjust the color with gamma data. Vp-p should be higher then 4V.(Option 5V)

Note2: Viewing direction is follow the data which measured by optics equipment.

Note3: Requirements on Environmental Protection: RoHS

Note4: LCM weight tolerance: +/- 5%

Drawing:
